magnum md90 se (md100) tuner audiophile

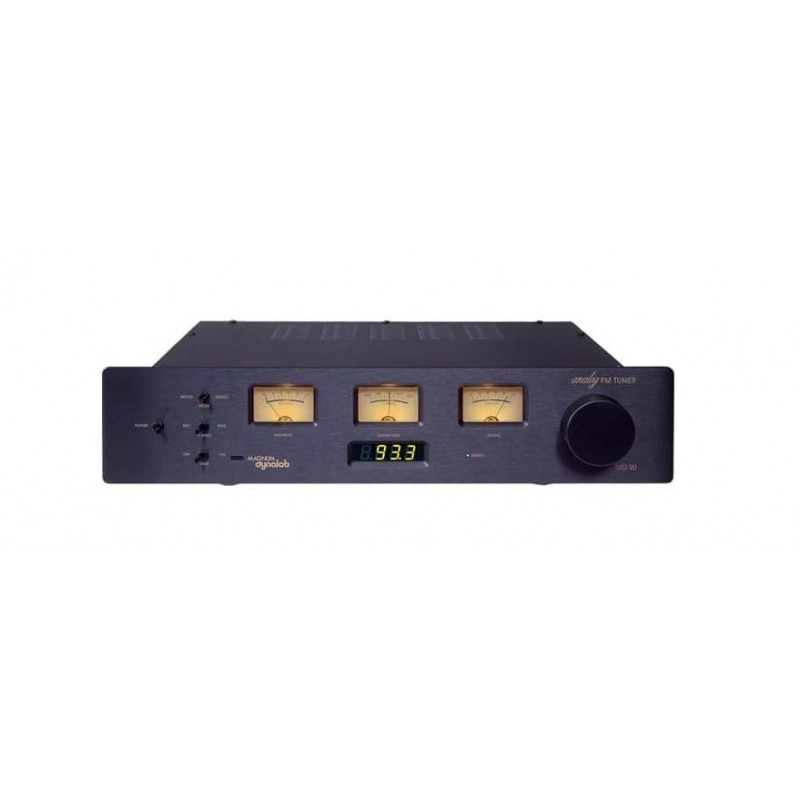

MAGNUM DYNALAB MD-90-SE

Mêmes caractéristiques que le MD90:
Transformateur Toroïdal
Center Tune, Signal Strength et multipath (ondes réfléchies)
Connectiques plaquées OR
Cable pur cuivre Kimber

Et en plus:
Circuit Audio amélioré avec capacités Solen Polypropylène
Sorties Symétriques
Module de sélection laiton

Usable sensitivity- Mono – 10.3 dBf
50 dB quieting – Mono – 13.2 dBf
50 dB quieting – Stereo – 34.0 dBf
Capture ratio – 1.5 dB
Image rejection – 75.0 dB
Signal to noise ratio – 75.0 dB
Alternate channel – Wide – 60.0 dB
Alternate channel – Narrow – 80.0 dB
Adjacent channel – Wide – 9.0 dB
Adjacent channel – Narrow – 25.0 dB
THD – Mono – 0.10 %
THD – Stereo – 0.18 %
Stereo separation – 50.0 dB
AM suppression – -70.0 dB
SCA rejection – -80.0 dB
IF rejection – -80.0 dB
19 KHz and 38 KHz component rejection – -75.0 dB
Audio frequency response (+/- 1 dB) – 20 Hz – 17 KHz
Balanced audio output (600 ohms) – 2.2 V
Line audio output (RCA) – 1.0 V
Line power (Must be specified)
–110/220/230/240- VAC
Dimensions (inches H.W.D.) – 4 x 17.75 x 13
Weight (lbs./kgs) – 12/5.45
Power consumption (Typ/Max) – 50w/100w
Finition: noire
Option Façade Argent
(sans télécommande)
