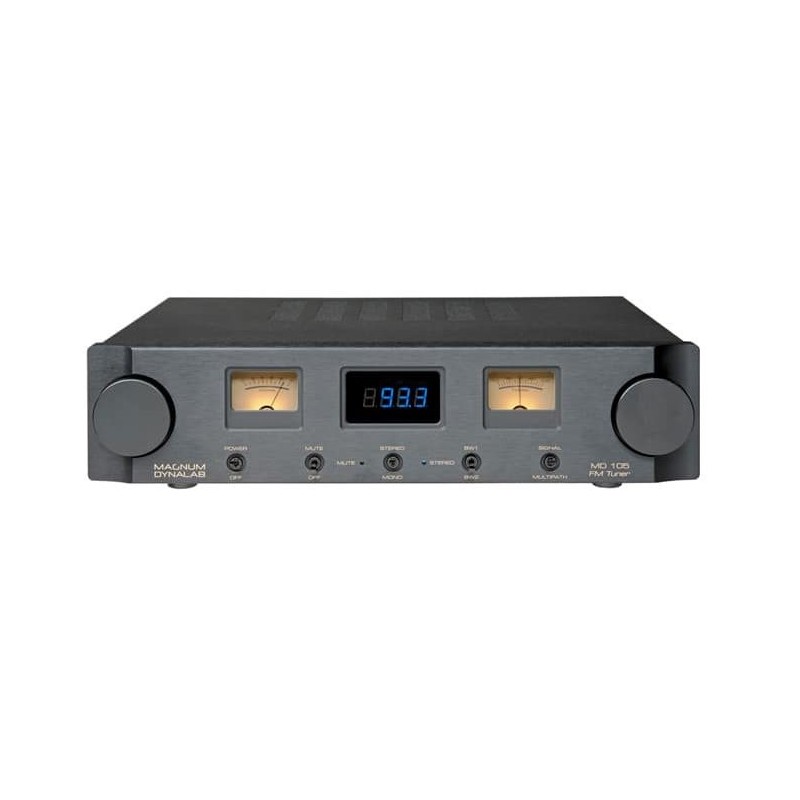

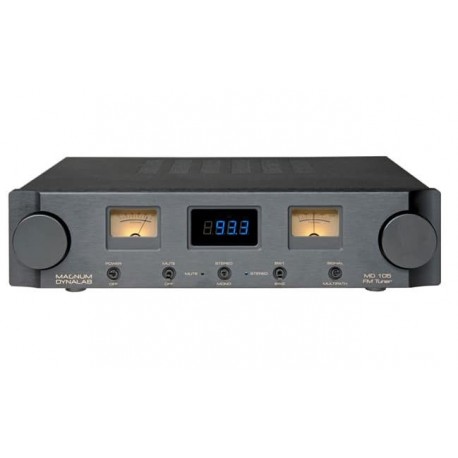

MAGNUM DYNALAB MD-105T

Usable sensitivity- Mono – 0.7 uV 9.0 dBf
50 dB quieting – Mono – 2.0 uV 9.9 dBf
50 dB quieting – Stereo – 2.3 uV 25.0 dBf
Capture ratio – 1.5 dB
Image rejection – 110.0 dB
Signal to noise ratio – 80.0 dB
Alternate channel – Wide – 40.0 dB
Alternate channel – Narrow – 70.0 dB
Adjacent channel – Wide – 3.0 dB
Adjacent channel – Narrow – 35.0 dB
THD – Mono – 0.10 %
THD – Stereo – 0.18 %
Stereo separation – 50.0 dB
AM suppression – 70.0 dB
SCA rejection – 80.0 dB
IF rejection – 80.0 dB
19 KHz and 38 KHz component rejection – 75.0 dB
Audio frequency response (+/- 1 dB) – 15 Hz – 17 KHz
Balanced audio output (600 ohms) 2.2 V
Line audio output (RCA) – 1.0 V
Line power (Must be specified) –
110/220/230/240- VAC
Dimensions (inches H.W.D.) – 4 x 19 x 15
Dimensions (cm H.W.D.) – 11.43 x 48.3 x 38.1
Weight (lbs./kgs) – 18/7.96
Power consumption (Typ/Max) – 50w/100w
Finition: noire
Option Façade argent
Option télécommande pure analogique
Option DAC
TUBE SPECIFICATIONS
Filament current (max) 330 mA (min) 270 mA
Anode current (1) (max) 1.07 mA (min) 0.92 mA
Anode current (2) (max) 1.07 mA (min) 0.92 mA
Total harmonic distortion < 1.8%
Tubes position 1 and 2 MD Reference Silver 6922
